| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | $380.88 |
| 5-19 | $320.00 | |
| 20-49 | $273.63 | |
| from 50 | On request |
NRND (Not Recommended for New Designs): These products continue to be available, but are not recommended for new projects. Our sales team will be happy to suggest alternatives.
Specifications
Technical illustrations

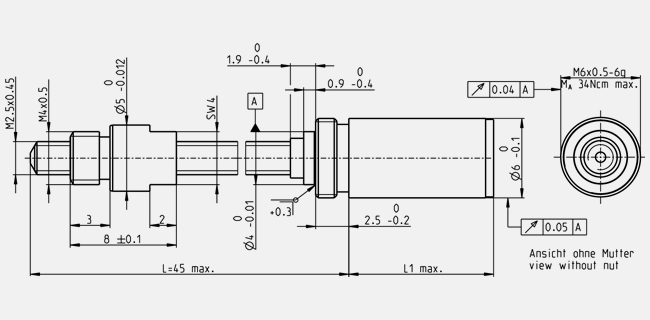

- Dimension drawing
| General information | |
| Gearhead type | GP |
| Outer diameter | 6 mm |
| Version | Spindle drive with metric screw |
| Gearhead Data | |
| Number of stages | 5 |
| Reduction | 854 : 1 |
| Absolute reduction | 14348907/16807 |
| Max. motor shaft diameter | 1 mm |
| Max. feed velocity | 0.2 mm/s |
| Max. feed force continuous | 10 N |
| Max. feed force intermittent | 18 N |
| Direction of rotation, drive to output | = |
| Max. efficiency | 16 % |
| Average backlash no load | 2.8 ° |
| Mechanical positioning accuracy | 0.108 mm |
| Mass inertia | 0.000335 gcm² |
| Gearhead length (L1) | 17.1 mm |
| Max. transmittable power (continuous) | 0.004 W |
| Max. transmittable power (intermittent) | 0.006 W |
| Technical Data | |
| Spindle length | 40.4 mm |
| Bearing at output | ball bearing |
| Radial play | max. 0.12 mm, 5 mm from flange |
| Max. radial load | 5 N, 5 mm from flange |
| Max. force for press fits | 10 N |
| Max. continuous input speed | 12000 rpm |
| Max. intermittent input speed | 40000 rpm |
| Recommended temperature range | -15...+80 °C |
| Product | |
| Weight | 4 g |
