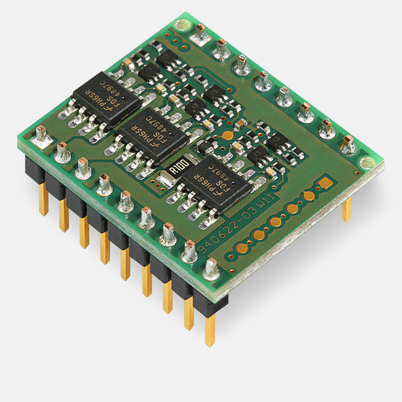

DEC Module 24/2, digital 1-Q-EC Amplifier 24 V / 2 A, speed control, OEM module
Part number 367661
Price scales | Quantity | Price per unit |
---|---|---|
Prices excluding VAT and shipping costs | 1-4 | $53.75 |
5-19 | $50.38 | |
20-49 | $46.50 | |
from 50 | On request |
Specifications
Product | |
Weight | 4 g |
Motor | |
EC motors up to | 48 W |
Sensor | |
Digital Hall sensors (EC motors) | Yes |
Operating modes | |
Speed controller (open loop) | Yes |
Speed controller (closed loop) | Yes |
Electrical data | |
Operating voltage Vcc (min.) | 8 V |
Operating voltage Vcc (max.) | 24 V |
Max. output voltage (factor * Vcc) | 1 |
Max. output current Imax | 3 A |
Continuous output current Icont | 2 A |
PWM clock frequency of power stage | 46.8 kHz |
Sampling rate PI speed controller | 0.25 kHz |
Max. speed (EC; 1 pole pair) block commutation | 80000 rpm |
Built-in motor choke per phase | 0 µH |
Inputs | |
Hall sensor signals | H1, H2, H3 |
Digital inputs | 4 |
Functionality of digital inputs | enable, direction, speed range |
Analog inputs | 2 |
Resolution, range, circuit | 10-bit, 0…+5V, referenced to Ground |
Functionality of analog inputs | set value, current limit |
Outputs | |
Digital outputs | 1 |
Functionality of digital outputs | ready |
Voltage outputs | |
Hall sensor supply voltage | +5 VDC, max. 35 mA |
Protective functions | |
Protective functions | current limit, blockage protection, excess temperature, undervoltage, overvoltage, voltage transients, short-circuits in the motor cable |
Ambient conditions | |
Temperature – Operation (min.) | -10 °C |
Temperature – Operation (max.) | 45 °C |
Temperature – Storage (min.) | -40 °C |
Temperature – Storage (max.) | 85 °C |
Humidity (non-condensing) (min.) | 20 % |
Humidity (non-condensing) (max.) | 80 % |
Mechanical data | |
Weight | 4 g |
Dimension (length) | 24.2 mm |
Dimension (width) | 20.38 mm |
Dimension (height) | 12.7 mm |
Mounting | mountable on socket terminal strips pitch 2.54 mm |
Description
The DEC Module 24/2 (Digital EC Controller) is a 1-quadrant amplifier for controlling EC motors with Hall sensors with a maximum output of 48 watts.Downloads
