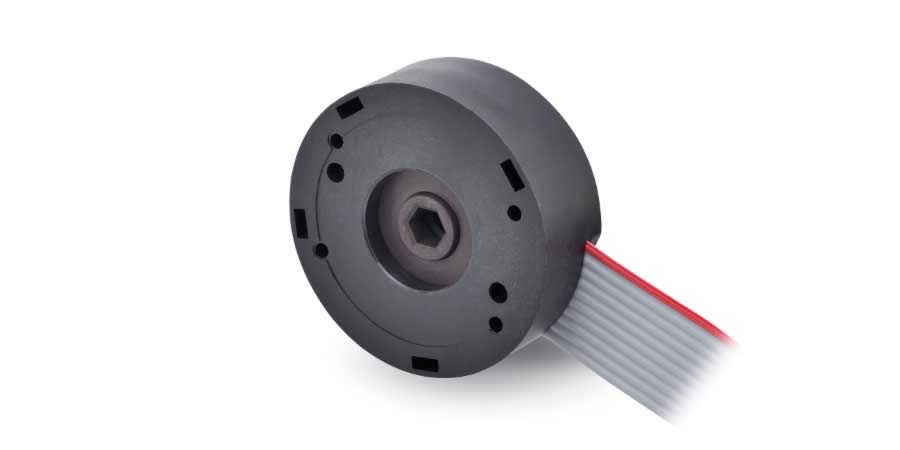

Encoder MR, Type L, 256 CPT, 3 Channels, with Line Driver

Part number 225783

Encoder MR, Type L, 256 CPT, 3 Channels, with Line Driver

This product is being discontinued. Our sales team will be happy to inform you about last order dates and alternatives.

Sensors can be purchased only as a component of a combination.

Specifications

General information
Counts per turn 256
Number of channels 3
Line Driver Yes
Max. mechanical speed 18750 rpm
Technical Data
Supply voltage Vcc 4.7...5.25 V
Output signal TTL
Driver used logic TTL
Output current per channel 0...5 mA
Phase shift 90 °e
Phase shift, inaccuracy 45 °e
Index synchronized to AB Yes
Max. moment of inertia of code wheel 1.7 gcm²
Operating temperature -25...+85 °C

Description

High precision encoders, DC tachometers and resolvers with a high signal resolution are mounted exclusively on motors with through shafts for resonance reasons. The assembly requires adjustment to the motors and may only be done in the delivery plant.
