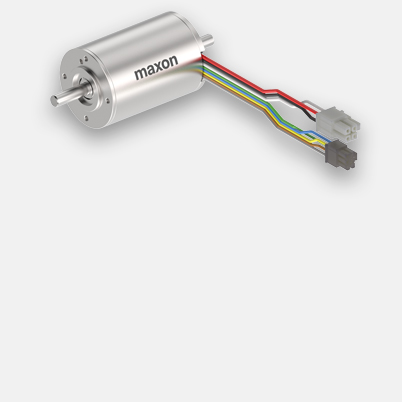

NRND (Not Recommended for New Designs): These products continue to be available, but are not recommended for new projects. Our sales team will be happy to suggest alternatives.
Specifications
Technical illustrations

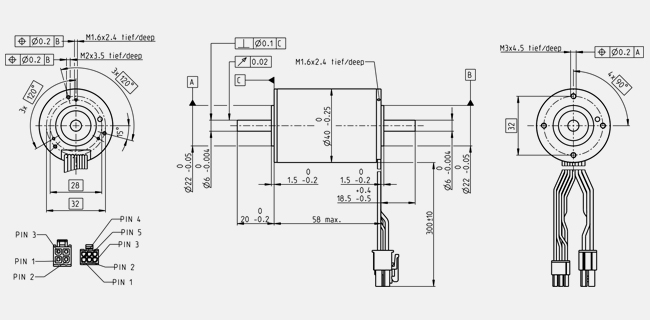

Dimension drawing
Information: Drawings are not to scale.
Values at nominal voltage
Nominal voltage
36 V
No load speed
8470 rpm
No load current
237 mA
Nominal speed
7030 rpm
Nominal torque (max. continuous torque)
95 mNm
Nominal current (max. continuous current)
2.55 A
Stall torque
595 mNm
Stall current
14.9 A
Max. efficiency
78 %
Characteristics
Terminal resistance
2.42 Ω
Terminal inductance
0.379 mH
Torque constant
40 mNm/A
Speed constant
239 rpm/V
Speed / torque gradient
14.4 rpm/mNm
Mechanical time constant
7.74 ms
Rotor inertia
51.2 gcm²
Thermal data
Thermal resistance housing-ambient
4.63 K/W
Thermal resistance winding-housing
0.542 K/W
Thermal time constant winding
4.28 s
Thermal time constant motor
1060 s
Ambient temperature
-40...+100 °C
Max. winding temperature
+155 °C
Mechanical data
Bearing type
ball bearings
Max. speed
12000 rpm
Axial play
0 mm, at radial load < 10 N
0.14 mm, at radial load > 10 N
Max. axial load (dynamic)
8 N
Max. force for press fits (static)
211 N
(static, shaft supported)
5000 N
Max. radial load
80 N, 5 mm from flange
Other specifications
Number of pole pairs
1
Number of phases
3
Number of autoclave cycles
0
Product
Weight
460 g
Operating Range
Continuous operation range
Short term operation range
Description
The new maxon EC-max program picks up the ideology of the successful A-max and RE-max motors.The electronically commutated DC motors are based on the same parts platform idea, creating a wide market-oriented range in the modular system with gearheads, sensors and brakes.
