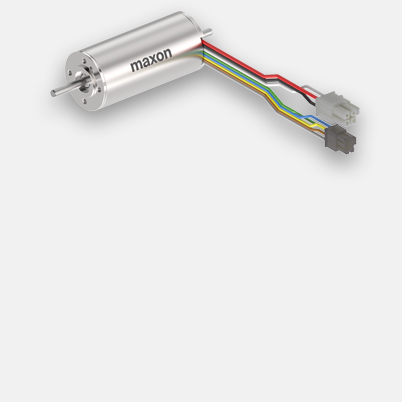

EC-max 30 Ø30 mm, brushless, 60 Watt, with Hall sensors
Part number 272763
| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | $389.75 |
| 5-19 | $301.25 | |
| 20-49 | $224.00 | |
| from 50 | On request |
Specifications
Technical illustrations

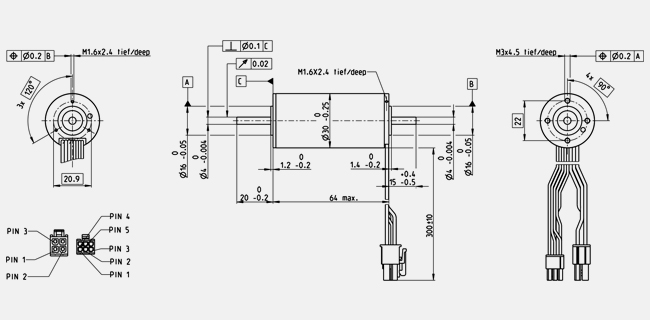

- Dimension drawing
Information: Drawings are not to scale.
| Values at nominal voltage | |
| Nominal voltage | 24 V |
| No load speed | 9340 rpm |
| No load current | 231 mA |
| Nominal speed | 8040 rpm |
| Nominal torque (max. continuous torque) | 60.7 mNm |
| Nominal current (max. continuous current) | 2.66 A |
| Stall torque | 458 mNm |
| Stall current | 18.8 A |
| Max. efficiency | 81 % |
| Characteristics | |
| Terminal resistance | 1.27 Ω |
| Terminal inductance | 0.143 mH |
| Torque constant | 24.3 mNm/A |
| Speed constant | 393 rpm/V |
| Speed / torque gradient | 20.6 rpm/mNm |
| Mechanical time constant | 4.73 ms |
| Rotor inertia | 21.9 gcm² |
| Thermal data | |
| Thermal resistance housing-ambient | 7.4 K/W |
| Thermal resistance winding-housing | 0.5 K/W |
| Thermal time constant winding | 2.71 s |
| Thermal time constant motor | 1000 s |
| Ambient temperature | -40...+100 °C |
| Max. winding temperature | +155 °C |
| Mechanical data | |
| Bearing type | ball bearings |
| Max. speed | 15000 rpm |
| Axial play | 0 mm, at radial load < 6 N |
| 0.14 mm, at radial load > 6 N | |
| Max. axial load (dynamic) | 5 N |
| Max. force for press fits (static) | 98 N |
| (static, shaft supported) | 1300 N |
| Max. radial load | 25 N, 5 mm from flange |
| Other specifications | |
| Number of pole pairs | 1 |
| Number of phases | 3 |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 305 g |
-
Operating Range
| Continuous operation range | ||
| Short term operation range | ||
