Specifications
| Values at nominal voltage |
| Nominal voltage |
30 V |
| No load speed |
2080 rpm |
| No load current |
493 mA |
| Nominal speed |
1620 rpm |
| Nominal torque (max. continuous torque) |
1560 mNm |
| Nominal current (max. continuous current) |
10.5 A |
| Stall torque |
9950 mNm |
| Stall current |
107 A |
| Max. efficiency |
87 % |
| Characteristics |
| Terminal resistance |
0.28 Ω |
| Terminal inductance |
0.369 mH |
| Torque constant |
136 mNm/A |
| Speed constant |
70.2 rpm/V |
| Speed / torque gradient |
0.144 rpm/mNm |
| Mechanical time constant |
7.72 ms |
| Rotor inertia |
5100 gcm² |
| Thermal data |
| Thermal resistance housing-ambient |
0.867 K/W |
| Thermal resistance winding-housing |
0.848 K/W |
| Thermal time constant winding |
26.5 s |
| Thermal time constant motor |
129 s |
| Ambient temperature |
-40...+100 °C |
| Max. winding temperature |
+125 °C |
| Mechanical data |
| Max. speed |
5000 rpm |
| Other specifications |
| Number of pole pairs |
11 |
| Number of phases |
3 |
| Product |
| Weight |
988 g |

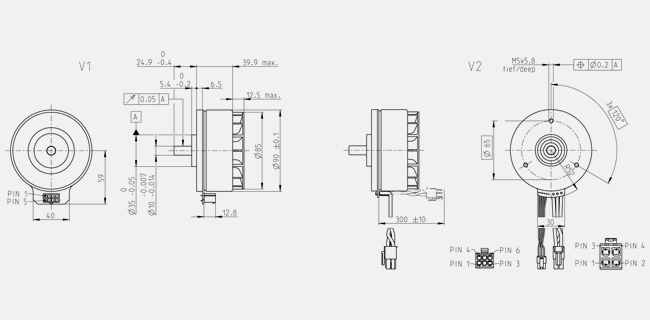

Description

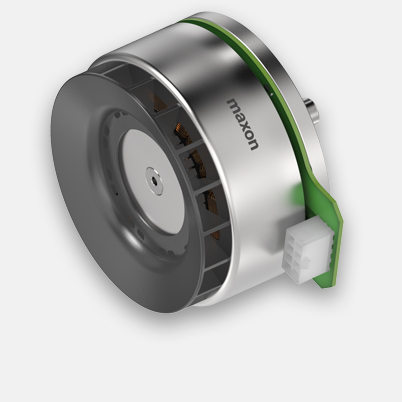

The flat design of the brushless EC flat motors makes them the perfect solution for many applications. The thought-through, simple design makes it possible to largely automate the manufacturing—this is reflected by the economical price.
The fan wheel provides active cooling during operation, which permits very high continuous torques.
