Screw Drive GP 6 S Ø6 mm, Metric spindle, Ceramic Version | Ceramic Version
Part number 437380
| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | $420.12 |
| 5-19 | $353.03 | |
| 20-49 | $301.73 | |
| from 50 | On request |
Specifications
Technical illustrations

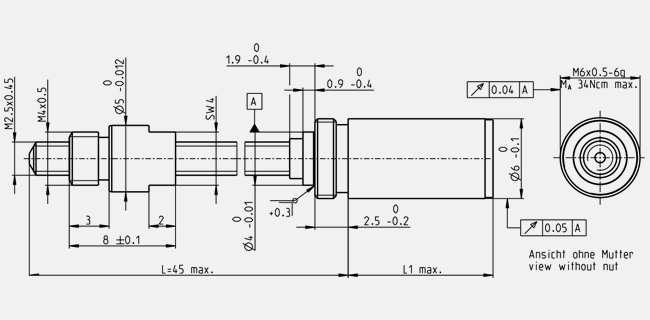

- Dimension drawing
| General information | |
| Gearhead type | GP |
| Outer diameter | 6 mm |
| Version | Spindle drive with metric screw |
| Gearhead Data | |
| Number of stages | 1 |
| Reduction | 3.9 : 1 |
| Absolute reduction | 27/7 |
| Max. motor shaft diameter | 1 mm |
| Max. feed velocity | 25 mm/s |
| Max. feed force continuous | 2 N |
| Max. feed force intermittent | 6 N |
| Direction of rotation, drive to output | = |
| Max. efficiency | 39 % |
| Average backlash no load | 1.8 ° |
| Mechanical positioning accuracy | 0.081 mm |
| Mass inertia | 0.001 gcm² |
| Gearhead length (L1) | 6.9 mm |
| Max. transmittable power (continuous) | 0.1 W |
| Max. transmittable power (intermittent) | 0.297 W |
| Technical Data | |
| Spindle length | 40.4 mm |
| Radial play | max. 0.12 mm, 5 mm from flange |
| Axial play of the nut | 0 - 0.079 mm |
| Max. radial load | 5 N, 5 mm from flange |
| Max. force for press fits | 10 N |
| Max. continuous input speed | 12000 rpm |
| Max. intermittent input speed | 40000 rpm |
| Recommended temperature range | -15...+80 °C |
| Product | |
| Weight | 3 g |
Description
Compact, easy to configure screw drives as complete systems. With integrated axial bearing forhigh axial loads. Versions with ball screw, metric spindle and trapezoidal spindle.
