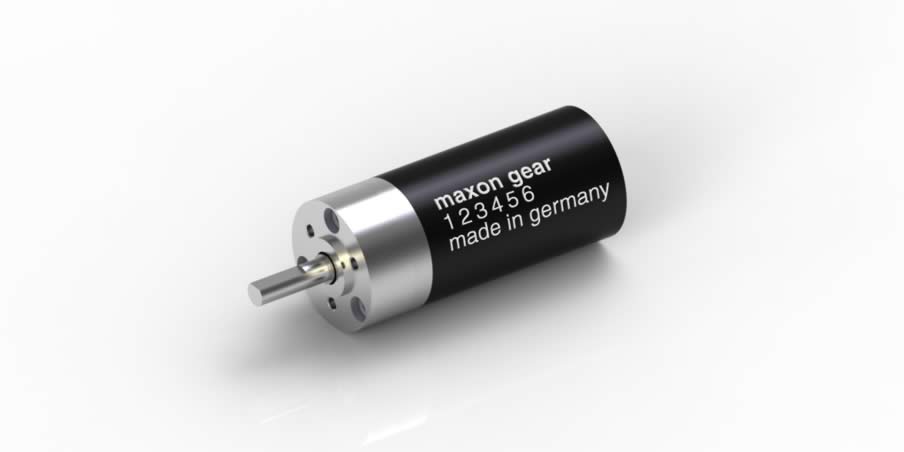

Planetary Gearhead GP 22 M Ø22 mm, 0.5 - 2.0 Nm, Sterilizable | Sterilizable
Part number 305130
This product can no longer be ordered. Please contact our sales support with the form. Thank you
Specifications
Technical illustrations

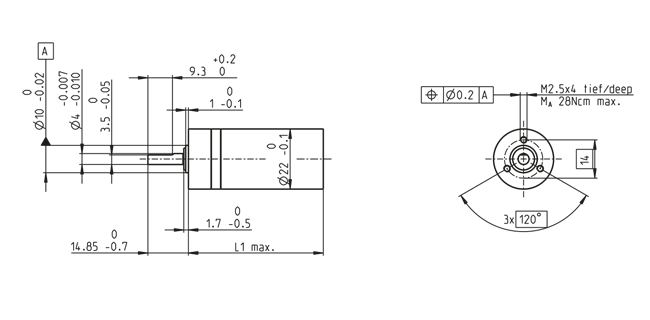

- Dimension drawing
Information: Drawings are not to scale.
| General information | |
| Gearhead type | GP |
| Outer diameter | 22 mm |
| Version | Sterilizable |
| Gearhead Data | |
| Reduction | 4.4 : 1 |
| Absolute reduction | 57/13 |
| Max. motor shaft diameter | 3.2 mm |
| Number of stages | 1 |
| Max. continuous torque | 0.5 Nm |
| Max. intermittent torque | 0.8 Nm |
| Direction of rotation, drive to output | = |
| Max. efficiency | 84 % |
| Average backlash no load | 1 ° |
| Mass inertia | 0.5 gcm² |
| Gearhead length (L1) | 35.8 mm |
| Max. transmittable power (continuous) | 95 W |
| Max. transmittable power (intermittent) | 150 W |
| Technical Data | |
| Bearing at output | ball bearing |
| Radial play | max. 0.12 mm, 10 mm from flange |
| Axial play | 0 - 0.05 mm |
| Max. radial load | 20 N, 10 mm from flange |
| Max. axial load (dynamic) | 100 N |
| Max. force for press fits | 100 N |
| Max. continuous input speed | 8000 rpm |
| Max. intermittent input speed | 8000 rpm |
| Recommended temperature range | -15...+100 °C |
| Extended temperature range | -40...+100 °C |
| Number of autoclave cycles | 1000 |
| Product | |
| Weight | 64 g |
