RECOMMENDED PRODUCT
Available on short notice!Our recommended products are ready for shipping within 2 – 11 working days.

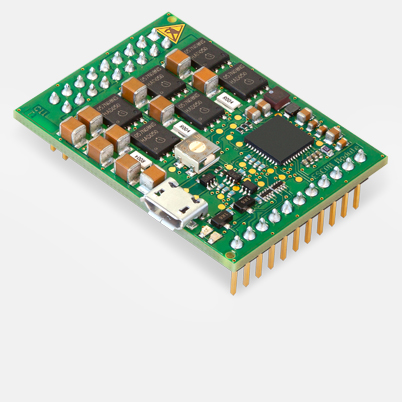

ESCON Module 50/5, 4-Q Servocontroller for DC/EC motors, 5/15 A, 10 - 50 VDC
Part number 438725
Price scales | Quantity | Price per unit |
---|---|---|
Prices excluding VAT and shipping costs | 1-4 | $225.38 |
5-19 | $211.00 | |
20-49 | $195.13 | |
from 50 | On request |
Specifications
Product | |
Weight | 12 g |
Motor | |
DC motors up to | 250 W |
EC motors up to | 250 W |
Sensor | |
Without sensor (DC motors) | Yes |
DC tacho (DC motors) | Yes |
Digital incremental encoder (2-channel, single-ended) | Yes |
Digital incremental encoder (2-channel, differential) | Yes |
Digital incremental encoder (3-channel, differential) | Yes |
Digital Hall sensors (EC motors) | Yes |
Operating modes | |
Current controller | Yes |
Speed controller (open loop) | Yes |
Speed controller (closed loop) | Yes |
Electrical data | |
Operating voltage Vcc (min.) | 10 V |
Operating voltage Vcc (max.) | 50 V |
Max. output voltage (factor * Vcc) | 0.98 |
Max. output current Imax | 15 A |
Max. time of peak output current Imax | 20 s |
Continuous output current Icont | 5 A |
PWM clock frequency of power stage | 53.6 kHz |
Sampling rate PI current controller | 53.6 kHz |
Sampling rate PI speed controller | 5.36 kHz |
Max. efficiency | 98 % |
Max. speed (DC) | 150000 rpm |
Max. speed (EC; 1 pole pair) block commutation | 150000 rpm |
Inputs | |
Hall sensor signals | H1, H2, H3 |
Encoder signals | A, A, B, B\ |
Max. encoder input frequency | 1 MHz |
Digital inputs | 2 |
Functionality of digital inputs | Enable, enable CW, enable CCW, enable CW+CCW, enable + direction of rotation, stop, PWM set value, RC Servo set value, fixed set value |
Analog inputs | 2 |
Resolution, range, circuit | 12-bit, -10…+10V, differential |
Functionality of analog inputs | Set value, current limit, offset, speed ramp |
Potentiometers | 1 |
Functionality of the potentiometers | set value, current limit, offset, speed ramp, gain, IxR factor |
Outputs | |
Digital outputs | 2 |
Functionality of digital outputs | ready, speed comparator, current comparator, commutation frequency |
Analog outputs | 2 |
Resolution, range | 12-bit, -4…+4V |
Functionality of analog outputs | current monitor,speed monitor, temperature, fixed value |
Voltage outputs | |
Hall sensor supply voltage | +5 VDC, max. 30 mA |
Encoder supply voltage | +5 VDC, max. 70 mA |
Auxiliary output voltage | +5 VDC, max. 10 mA |
Interface | |
USB (full speed) | Yes |
Display | |
Status indicator "Ready" | green LED |
Status indicator "Error" | red LED |
Protective functions | |
Protective functions | current limit, overcurrent, excess temperature, undervoltage, overvoltage, voltage transients, short-circuits in the motor cable |
Ambient conditions | |
Temperature – Operation (min.) | -30 °C |
Temperature – Operation (max.) | 45 °C |
Temperature – Extended Range | +45…+75°C, Derating: -0.167 A/°C |
Temperature – Storage (min.) | -40 °C |
Temperature – Storage (max.) | 85 °C |
Humidity (non-condensing) (min.) | 5 % |
Humidity (non-condensing) (max.) | 90 % |
Mechanical data | |
Weight | 12 g |
Dimension (length) | 43.2 mm |
Dimension (width) | 31.8 mm |
Dimension (height) | 12.7 mm |
Mounting | mountable on socket terminal strips pitch 2.54 mm |
Software | |
Installation program | ESCON Setup |
Graphical User Interface | ESCON Studio |
Operating system | Windows 10, 8, 7, Windows XP SP3 |
Description
The ESCON Module 50/5 is a small-sized, powerful 4-quadrant PWM servo controller OEM module for the highly efficient control of permanent magnet-activated brushed DC motors or brushless EC motors up to approximately 250 Watts.Downloads
