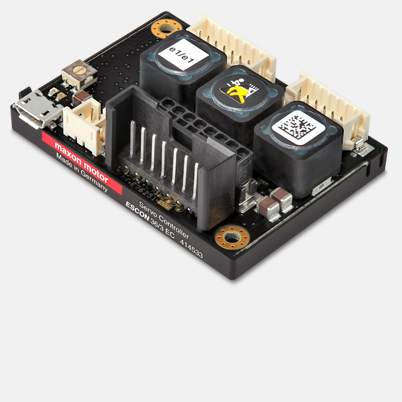

ESCON 36/3 EC, 4-Q Servocontroller for EC motors, 2.7/9 A, 10 - 36 VDC

Part number 414533

ESCON 36/3 EC, 4-Q Servocontroller for EC motors, 2.7/9 A, 10 - 36 VDC
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 $235.13
5-19 $220.13
20-49 $203.50
from 50 On request


Weight 36 g
EC motors up to 100 W
Digital Hall sensors (EC Motors) Yes
Operating modes
Current controller Yes
Speed controller (open loop) Yes
Speed controller (closed loop) Yes
Electrical data
Operating voltage Vcc (min.) 10 V
Operating voltage Vcc (max.) 36 V
Max. output voltage (factor * Vcc) 0.98
Max. output current Imax 9 A
Max. time of peak output current Imax 4 s
Continuous output current Icont 2.7 A
PWM clock frequency of power stage 53.6 kHz
Sampling rate PI current controller 53.6 kHz
Sampling rate PI speed controller 5.36 kHz
Max. efficiency 95 %
Max. speed (EC; 1 pole pair) block commutation 150000 rpm
Built-in motor choke per phase 47 µH
Hall sensor signals H1, H2, H3
Digital inputs 2
Functionality of digital inputs Enable, enable CW, enable CCW, enable CW+CCW, enable + direction of rotation, stop, PWM set value, RC Servo set value, fixed set value
Analog inputs 2
Resolution, range, circuit 12-bit, -10…+10V, differential
Functionality of analog inputs Set value, current limit, offset, speed ramp
Potentiometers 2
Functionality of the potentiometers set value, current limit, offset, speed ramp, gain, IxR factor
Digital outputs 2
Functionality of digital outputs ready, speed comparator, current comparator, commutation frequency
Analog outputs 2
Resolution, range 12-bit, -4…+4V
Functionality of analog outputs current monitor,speed monitor, temperature, fixed value
Voltage outputs
Hall sensor supply voltage +5 VDC, max. 30 mA
Auxiliary output voltage +5 VDC, max. 10 mA
USB (full speed) Yes
Status indicator "Ready" green LED
Status indicator "Error" red LED
Protective functions
Protective functions current limit, overcurrent, excess temperature, undervoltage, overvoltage, voltage transients, short-circuits in the motor cable
Ambient conditions
Temperature – Operation (min.) -30 °C
Temperature – Operation (max.) 45 °C
Temperature – Extended Range +45…+78°C, Derating: -0.081 A/°C
Temperature – Storage (min.) -40 °C
Temperature – Storage (max.) 85 °C
Humidity (non-condensing) (min.) 5 %
Humidity (non-condensing) (max.) 90 %
Mechanical data
Weight 36 g
Dimension (length) 55 mm
Dimension (width) 40 mm
Dimension (height) 19.8 mm
Mounting Flange for M2.5 screws
Installation program ESCON Setup
Graphical User Interface ESCON Studio
Operating system Windows 10, 8, 7, Windows XP SP3


The ESCON 36/3 EC is a small-sized, powerful 4-quadrant PWM servo controller for the highly efficient control of brushless EC motors up to approximately 100 Watts.
