IDX 56 M, □56 mm, brushless, with integrated electronics, EtherCAT | Drive with positioning/speed controller

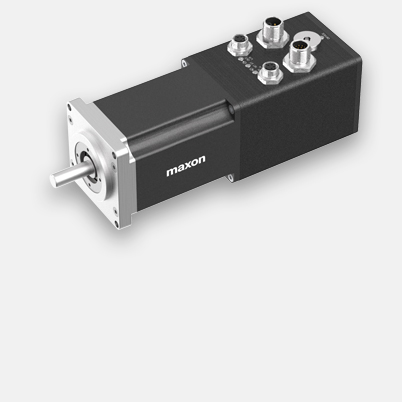

IDX 56 M, □56 mm, brushless, with integrated electronics, EtherCAT
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 $1,400.90*
5-19 $1,175.58*
20-49 $1,018.17*
from 50 On request

*Configurable products must be configured before ordering.
Prices may vary.

Specifications

Technical illustrations

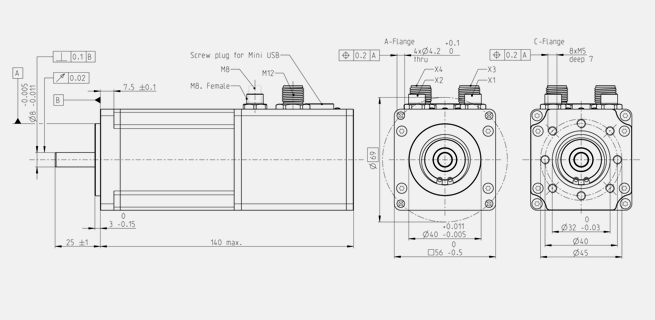

  • Dimension drawing

Information: Drawings are not to scale.

Drive data
Nominal power supply voltage 24 V
Nominal speed 4500 rpm
Nominal torque @25°C (max. continuous torque) 433 mNm
Nominal torque @40°C (max. continuous torque) 376 mNm
Nominal supply current @25°C 10 A
Nominal supply current @40°C 8.7 A
Maximum speed at nominal voltage 5105 rpm
Maximum permissible drive speed 6000 rpm
Maximum torque (short-time) 0.888 Nm
Maximum supply current (short-time) 24 A
Rotor inertia 170 gcm²
Nominal supply voltage +Vcc 12...48 V
Run-up time to maximum speed 9.8 ms
Protection class IP65
Commanding EtherCAT
Functionality Positioning-Control
Mechanical data
Axial play to 0.14 mm
Preload 21 N
Direction of force Zug
Max. axial load (dynamic) 12 N
Max. radial load, 12.5 mm from flange 110 N
Weight of the drive 1070 g

Description

maxon IDX drives consist of an EC-i motor, a magnetic absolute encoder (single-turn), and an EPOS4 positioning controller with integrated field-oriented control (FOC). The high-quality design complies with IP65 protection; only the output shaft needs to be sealed by the customer. The integrated temperature sensors on the winding and in the positioning controller are evaluated directly in the drive and enable optimal utilization of the operating range.
