Brushless DC motors with ironless or iron core winding.

Dynamic. Durable. Highly efficient.

Brushless DC motors from maxon offer a longer service life and higher speeds than brushed DC motors. In addition, they are maintenance-free. This makes them ideal for use in fit-and-forget applications.

maxon BLDC motors: Key information at a glance.

The use of an electronic controller ensures high-precision speed and torque control.

We have structured our series of BLDC motors in accordance with key parameters to help you find the appropriate motor faster.

Product comparison table - Brushless DC motors (BLDC)
ECX SPEED∅ 4 ... 22 mmECX TORQUE∅ 22 mmIDX Motor□ 56 ... 70 mmECX FLAT∅ 32 mmEC∅ 22 ... 60 mmEC-max∅ 16 ... 40 mmEC-4pole∅ 22 ... 32 mmEC-i∅ 30 ... 52 mmEC flat∅ 9.2 ... 90 mmEC frameless flat∅ 43 ... 90 mm EC frameless DT∅ 54 mm
Ironless windingYesNoNoNoYesYesYesNoNoNoNo
Internal rotorYesYesYesNoYesYesYesYesNoNoYes
ConfigurableYesYesYesYesNoNoNoNoNoNoNo
SizeNoNoNoNoNoNoNoNoNoNoNo
High speedYesNoNoNoYesYesYesNoNoNoNo
High torqueYesYesYesYesNoNoYesYesYesYesYes
DynamicNoYesYesNoNoNoYesNoNoNoYes
Price/performanceNoNoNoYesNoYesYesYesYesNoNo
Additional propertySterilizable versionNoIP65 protectionShort (flat) designIP54 and heavy-duty versionNoNoShort (flat) designShort (flat) designWithout housing, short (flat) designWithout housing, hollow shaft

Our product portfolio.

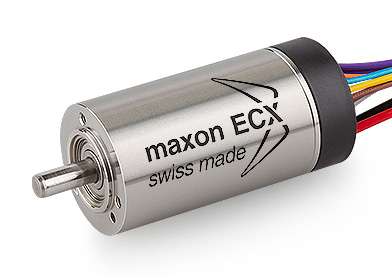

ECX SPEED

Extremely fast and quiet

ECX TORQUE

Multi-pole internal motor with high torque

IDX

Power in industrial housings

ECX FLAT

High torques in confined spaces

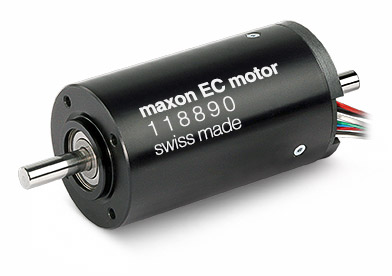

EC

Maximized life span

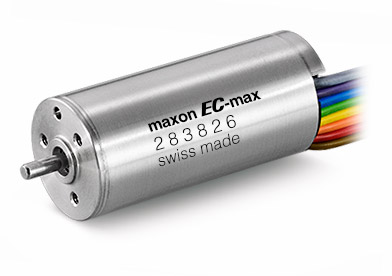

EC-max

A long service life at the best price

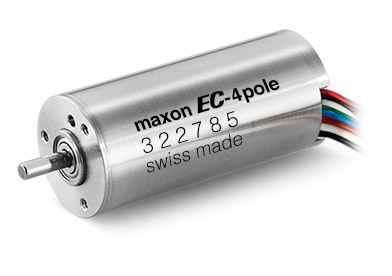

EC-4pole

That is top performance: ∅ 30 mm, 200 W

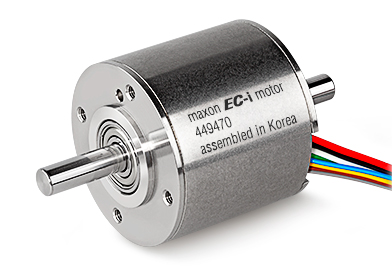

EC-i

A powerhouse for the smallest spaces

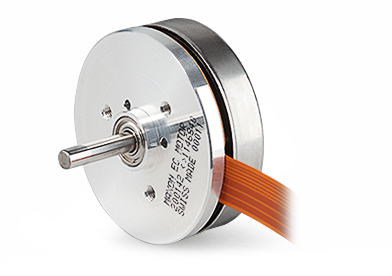

EC flat

Best price for high torques

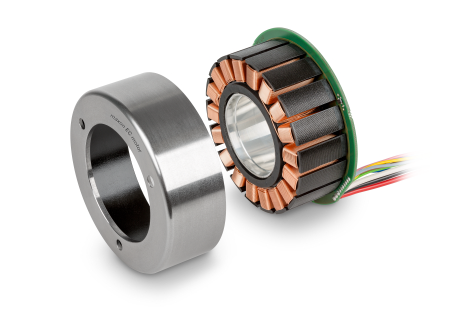

EC frameless flat

A dynamic motor for robotics

EC frameless DT

Even more dynamics for robotic drives

Parvalux

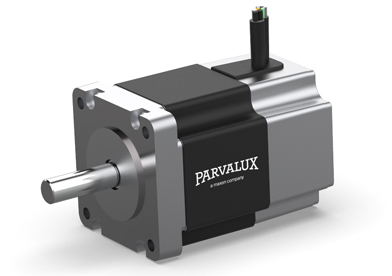

BLDC motors from Parvalux.

Since 2018, Parvalux Electric Motors Ltd has been part of the maxon Group. Parvalux offers an extensive range of brushless DC motors that are exclusively available from maxon as standalone BLDC motors or in combination with inline or angular gearheads. The motors provide high starting torque, outstanding power density, and quiet operation.
