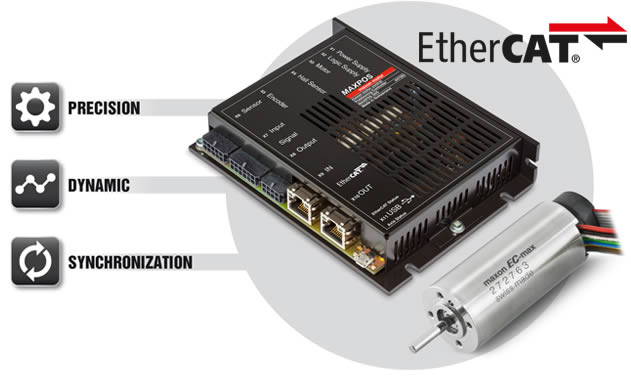

MAXPOS

The high-performance positioning motor controller by maxon motor.

MAXPOS 50/5 receives movement and I/O commands from a superior EtherCAT master, which carries out the process control. The extremely fast controllers and the diverse feedback options available provide the ideal conditions for the operation of permanent-magnet activated brushed and brushless DC motors in high-performance applications. Raising the bar for precision and synchronization. MAXPOS 50/5 supports CoE (CAN application layer over EtherCAT).





 MAXPOS features

The Feature Chart provides a quick overview of the most important features:

Feature Chart

MAXPOS integration

The MAXPOS Application Notes Collection provides hints for integration of MAXPOS into several EtherCAT master systems and further application support topics:

Application Notes

MAXPOS 50/5

Part number 447293

For brushed DC motors with encoders and brushless DC (maxon EC) motors with Hall sensors and encoders up to 250 W.

Details

MAXPOS Setup (complete version)

Installation includes:

  • MAXPOS Studio 1.4 (graphical user interface)
  • MAXPOS firmware 0x0121
  • Documentation (MAXPOS Feature Chart, MAXPOS Setup «Release Notes», Firmware Version of «Readme», Hardware Reference, MAXPOS Application Notes Collection, Firmware Specification, and Application Notes)
Download MAXPOS Setup
